Computerized Battery Charging And Discharging Test Equipment GB31241 UL1642

Name: Computerized Battery Charging And Discharging Test Equipment GB31241 UL1642
Brand: HBYIQI
Price: 1 USD

Wholesale Computerized Battery Charging And Discharging Test Equipment GB31241 UL1642 from china suppliers

Brand Name : HBYIQI

Model Number : HB-5V3A

Certification : ISO-9001

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : T/T

Delivery Time : 15 Days

Packaging Details : International Standard Package

Voltage Range : 0.010-5.000V, with ±0.1%

Current Range : 0.010-3.000A, with ±0.1%

Charge Model : Constant Current/Voltage/Power; Constant Current and Voltage;

Discharge Model : Constant Current/Power/Load

Contact Now

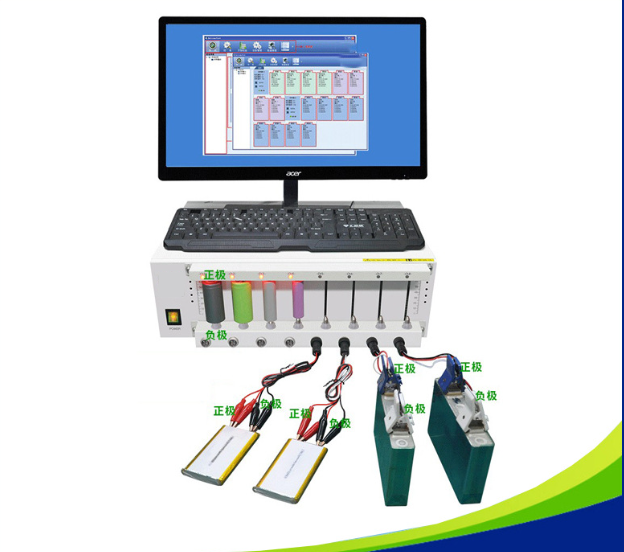

Battery Charging And Discharging Testing Equipment with Computer Control

Brand: HBYIQI

Equipment Name: Battery Charging and Discharging Tester

Model: HB-5V3A

Standard basis: IEC62133, UL1642, IEC62281, GB31241

Application: This is a high-precision and high-performance battery tester, set parameters in the computer software for various batteries' charging and discharging, such as 18650 cylindrical batteries, Li-polymer batteries; It can be used to test battery capacity/voltage/current and cycle test. And it is used by double constant current and constant voltage closed-loop with stable performance and single channel control. The Ethernet connection with the computer is convenient and flexible, and more devices can be added at any time through the switch.

Technical Parameter:

Model	HB-5V3A	HB-5V6A	HB-5V10A	HB-10V5A	HB-10V10A
Voltage Range	0.010-5.000V	0.010-5.000V	0.010-5.000V	0.020-10.000V	0.020-10.000V
Voltage Accuracy	士0.1%	士0.1%	±0.1%	±0.1%	士0.1%
Current Range	0.010-3.000A	0.010-5.000A	0.020-10.000A	0.010-5.000A	0.020-10.000A
Current Accuracy	±0.1%	±0.1%	±0.1%	±0.1%	±0.1%
Charge and Discharge Model	Charging with Constant Current/Voltage/Power Charging; Charging with Constant Current& Voltage; Discharging with Constant Current/Power/Load
Test Command Numbers	399 orders, 65535cycles; Supporting 5 layers of nested loops
Test Channels	8	8	8	8	8
Communication Mode	Ethernet 100Mbps
Security	Hardware anti-reverse connection; Power failure data protection; Software set protection conditions
Data Record	1Time/Second	1Time/Second	1Time/Second	1Time/Second	1Time/Second
Full Scale Current Response Time	≤10ms	≤10ms	≤10ms	≤10ms	≤10ms
Input Impedance	≥1 Mohm	≥1 Mohm	≥1 Mohm	≥1 Mohm	≥1 Mohm

Features:

220V50HZ, support 110V customization
Network cable connector connects to the computer
Traditional linear, high precision, stable
Hardware anti-reverse protection is supported
Software overcurrent/overvoltage/undervoltage protection
The software interface is simple and the operation is simple
Chinese and English version could be choosed
0.1% precision, support 0.05% precision customization
Each channel is controlled independently
Modular structure, longer life

Device Operating Environment Requirements

Work Temperature	0℃-40℃
Storage Temperature	-10℃-50℃
Work Relative Humidity	≤70% RH No Condensation
Storage Relative Humidity	≤80% RH No Condensation
Input Power	950W
Input Voltage	AC220V±10%/50Hz; other power supply spec are optional
Fixture Type	Customization

Product Tags:

Battery Charging And Discharging Test Equipment

Computerized Battery Charging And Discharging Tester

Computerized Battery Charging And Discharging Test Equipment GB31241 UL1642 Images
